When it comes to electrical distribution, choosing the right type of DSL busbars is crucial for ensuring the safe and efficient transmission of power. One such reliable and versatile option is the Bolted Type Copper Busbars. These busbars are widely used in various industries and applications, thanks to their high conductivity, durability, and ease of installation.
Galvanized Iron - 60A,100A,125A
Copper - 160A,250A,400A
Aluminium - 200A,315A
Bolt Joint Insulated DSL Busbars
Copper has long been recognized as an excellent conductor of electricity due to its low electrical resistance. The Bolted Type Copper DSL Busbars leverage this inherent property of copper, ensuring minimal energy losses during power transmission. With rated current capacities ranging from 160A to 400A, these busbars offer a reliable solution for both low and high-power applications.
The Bolted Type Copper DSL Busbars are designed with durability in mind. Constructed using high-quality copper, these busbars exhibit exceptional mechanical strength, enabling them to withstand heavy loads and vibrations. Additionally, the bolted joints in these busbars ensure secure connections, minimizing the risk of faults or failures.

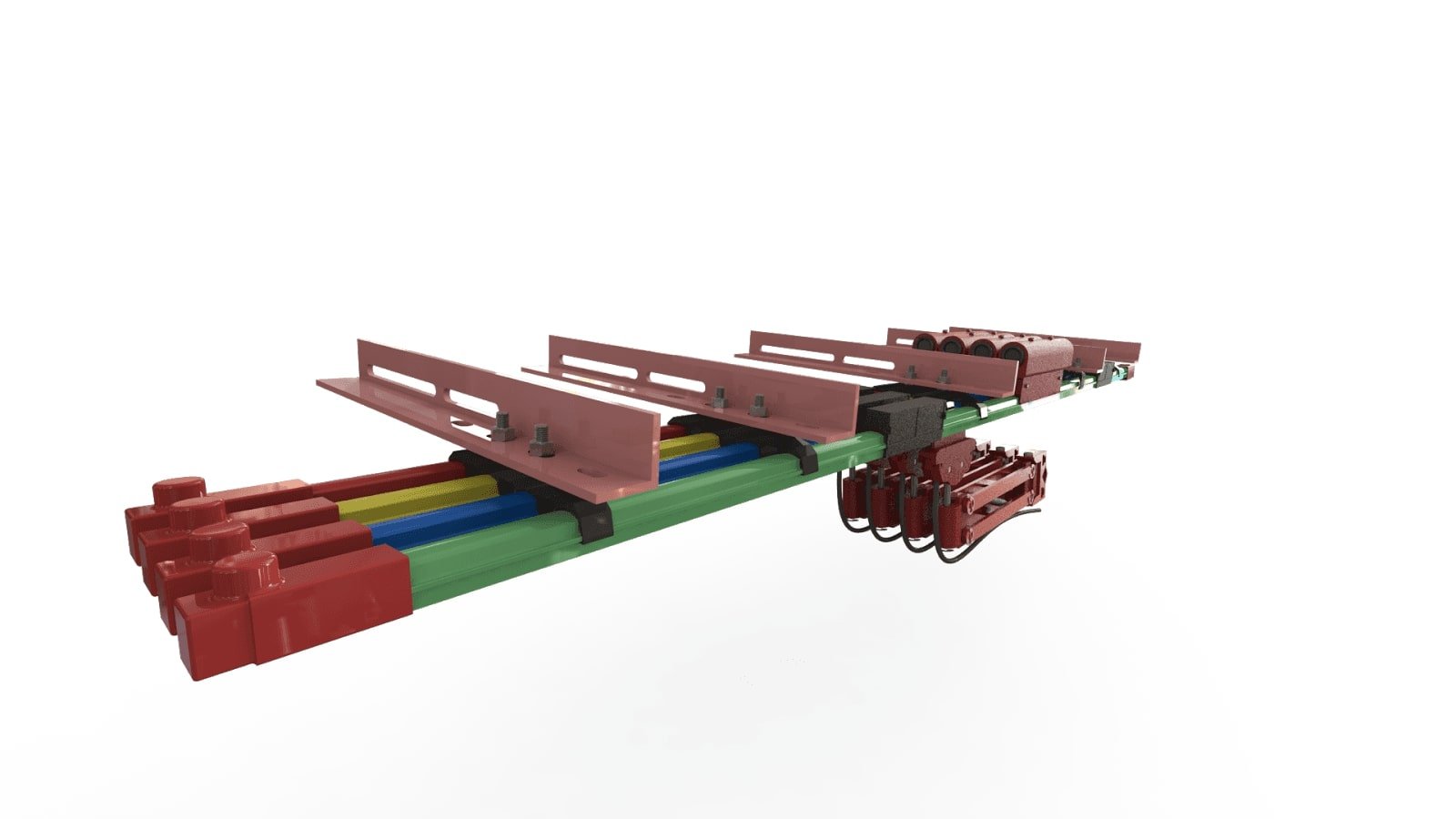

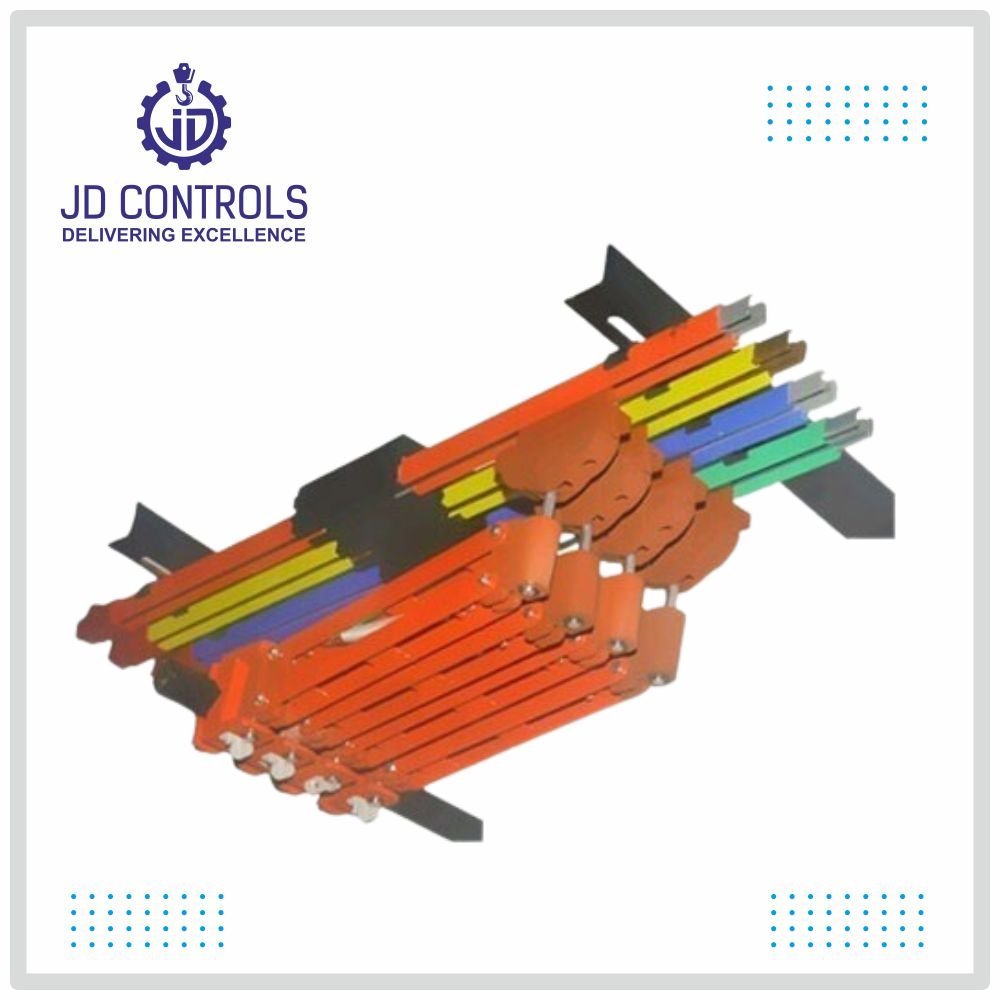

W Bolt Joint DSL busbar makes it easy to deliver 3 phase power to Electric Overhead EOT Cranes. Factories can transfer from 60 Amperes to 400 Ampere Current ,depending on the energy required by the crane machinery.
W DSL busbars are unique because the profile of this DSL busbar is very effective at dissipating heat. This profile is designed to have a large surface area to lose heat by convection method. It comes insulated from start to finish which prevents anyone from touching live sections of the DSL busbar. It is extremely easy to install with the help of standard tools.
| Sr. no. | Product Name | Description | Part Number |
|---|---|---|---|
| 1 | JDW 125Amp GI RYBG | 125 Amp - GI - 04 BARBOLTED (W) TYPE RED YELLOW BLUE GREEN COLOUR PVC | JDW-125-RYBG-GI |
| 2 | JDW 160Amp CU RYBG | 160 Amp - Copper - 04 BAR BOLTED (W) TYPE RED YELLOW BLUE GREEN COLOUR PVC | JDW-160-RYBG-CU |
| 3 | JDW 160Amp CU-GI RYBG | 160 Amp - Copper - 04 BAR BOLTED (W) TYPE RED YELLOW BLUE GREEN COLOUR PVC, 3 Copper Busbars and 1 GI DSL Busbar. | JDW-160-RYB-CU,G-GI |
| 4 | JDW 250Amp CU RYBG | 250 Amp - Copper - 04 BAR BOLTED (W) TYPE RED YELLOW BLUE GREEN COLOUR PVC | JDW-250-RYBG-CU |
| 5 | JDW 250Amp CU-GI RYBG | 250 Amp - Copper - 04 BAR BOLTED (W) TYPE RED YELLOW BLUE GREEN COLOUR PVC, 3 Copper Busbars and 1 GI DSL Busbar. | JDW-250-RYB-CU,G-GI |
| 6 | JDW 315Amp ALU RYBG | 315 Amp - Aluminium - 04 BAR BOLTED (W) TYPE RED YELLOW BLUE GREEN COLOUR PVC | JDW-315-RYBG-ALU |
| 7 | JDW 125Amp GI RYB | 125 Amp - GI - 03 BAR BOLTED (W) TYPE RED YELLOW BLUE COLOUR PVC | JDW-125-RYB-GI |
| 8 | JDW 160Amp CU RYB | 160 Amp - Copper - 03 BAR BOLTED (W) TYPE RED YELLOW BLUE COLOUR PVC | JDW-160-RYB-CU |
| 9 | JDW 250Amp CU RYB | 250 Amp - Copper - 03 BAR BOLTED (W) TYPE RED YELLOW BLUE COLOUR PVC | JDW-250-RYB-CU |
| 10 | JDW 315Amp ALU RYB | 315 Amp - Aluminium - 03 BAR BOLTED (W) TYPE RED YELLOW BLUE COLOUR PVC | JDW-315-RYB-ALU |
| 11 | JDW 160Amp CU RYBG Expansion Assembly | Expansion Assembly 160 Amp - Copper - 04 BAR BOLTED (W) TYPE | JDW-160-RYBG-CU-Expansion-Assembly |
| 12 | JDW 160Amp CU RYBG Expansion Assembly | Expansion Assembly 160 Amp - Copper - 04 BAR BOLTED (W) TYPE | JDW-160-RYBG-CU-Expansion-Assembly |
| 13 | JDW 160Amp CU-GI RYBG Expansion Assembly | Expansion Assembly 160 Amp - Copper - 04 BAR BOLTED (W) TYPE | JDW-160-RYB-CU,G-GI-Expansion-Assembly |
| 14 | JDW 250Amp CU RYBG Expansion Assembly | Expansion Assembly 250 Amp - Copper - 04 BAR BOLTED (W) TYPE | JDW-250-RYBG-CU-Expansion-Assembly |
| 15 | JDW 250Amp CU-GI RYBG Expansion Assembly | Expansion Assembly 250 Amp - Copper - 04 BAR BOLTED (W) TYPE | JDW-250-RYB-CU,G-GI-Expansion-Assembly |
| 16 | JDW 125Amp GI RYB Expansion Assembly | Expansion Assembly 125 Amp - GI - 03 BAR BOLTED (W) TYPE | JDW-125-RYB-GI-Expansion-Assembly |
| 17 | JDW 160Amp CU RYB Expansion Assembly | Expansion Assembly 160 Amp - Copper - 03 BAR BOLTED (W) TYPE | JDW-160-RYB-CU-Expansion-Assembly |
| 18 | JDW 250Amp CU RYB Expansion Assembly | Expansion Assembly 250 Amp - Copper - 03 BAR BOLTED (W) TYPE | JDW-250-RYB-CU-Expansion-Assembly |
| 19 | JDW 315Amp ALU RYB Expansion Assembly | Expansion Assembly 315 Amp - Aluminium - 03 BAR BOLTED (W) TYPE | JDW-315-RYB-ALU-Expansion-Assembly |
Versatile Applications: Meeting Diverse Needs
The versatility of the Bolted Type Copper DSL Busbars makes them suitable for a wide range of applications, including:
1. Industrial Facilities: From large manufacturing plants to industrial warehouses, these DSL busbars efficiently distribute power to various machinery, equipment, and control systems.
2. Commercial Buildings: Bolted Type Copper DSL Busbars are extensively used in commercial complexes, office buildings, and shopping malls to efficiently distribute electricity, providing a reliable power supply to lighting, HVAC systems, elevators, and more.
3. Data Centers: The high current-carrying capacity of these busbars makes them perfect for data centers, where uninterrupted power supply is critical. They ensure the efficient distribution of power to servers, UPS systems, and other network equipment.
Yes, Bolted Type Copper DSL Busbars can be used in outdoor applications. However, it is important to ensure suitable insulation and protection against harsh environmental conditions for long-term durability.
Yes, these DSL busbars are relatively easy to install. The bolted joints allow for convenient connections, and various accessories such as insulating shields and fixing brackets facilitate quick and secure installation.
Copper busbars offer higher electrical conductivity compared to materials such as aluminum and galvanized iron, minimizing energy losses and maximizing efficiency. Copper also exhibits excellent corrosion resistance and mechanical strength, ensuring long-lasting performance.
The Bolted Type Copper DSL Busbars offer an efficient, durable, and reliable solution for electrical distribution in various industries and applications. Their high conductivity, robust construction, and versatility make them the preferred choice for professionals seeking a safe and efficient power transmission solution.
By choosing Bolted Type Copper DSL Busbars, you ensure optimal electrical performance, reduced energy losses, and enhanced system reliability. Whether it's an industrial facility, commercial building, or a data center, these DSL busbars provide a solution that meets the diverse needs of electrical distribution.
Invest in the Bolted Type Copper DSL Busbars for a seamless and dependable power distribution system that powers your operations efficiently and safely.
