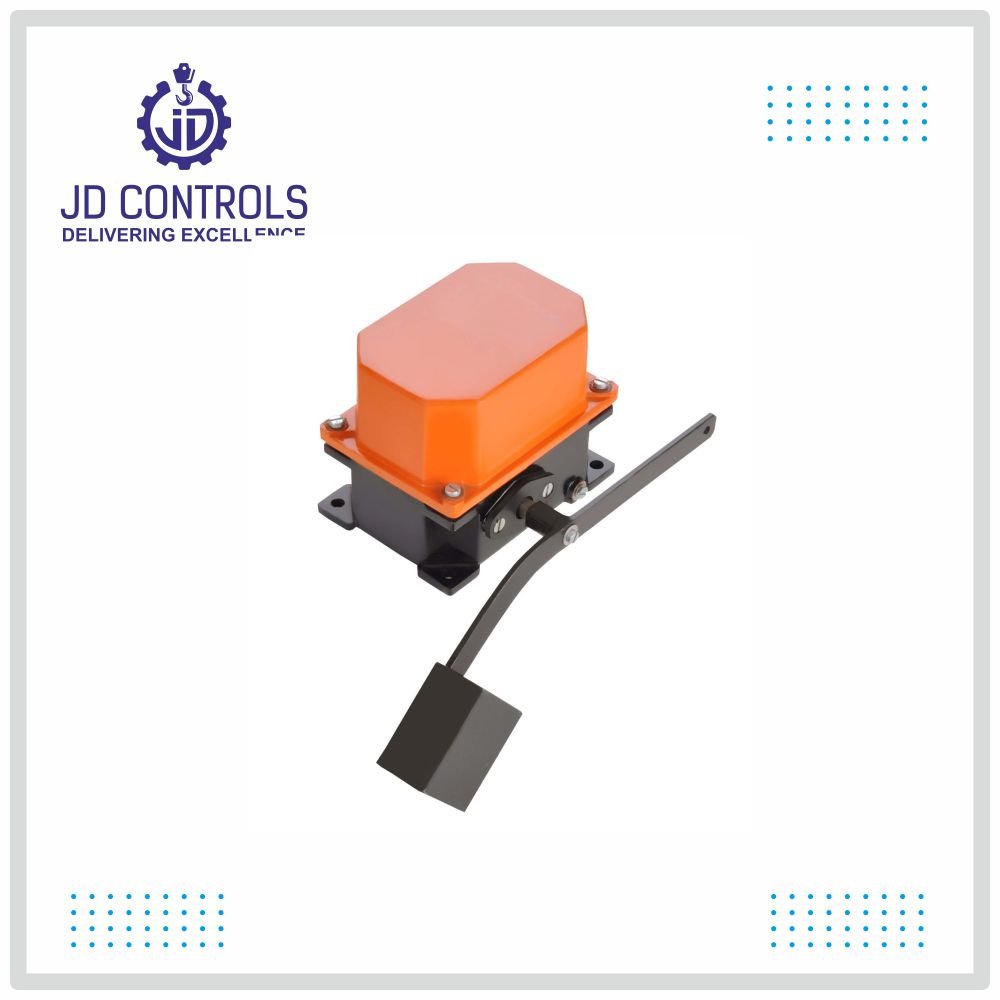

Counter Weight Limit Switch - 10/40 AMP

Counter Weight Limit Switch - 10/40 AMP

Counter weight Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists to prevent over travel of hoisting motion on power and control circuit up to 500 V and 40 Amps Continuous current. The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Counter Weight limit switch operates when it reaches a predetermined position when the weights rest on the surface of the limit switch.

Applications

  • All Material Handling and Lifting Equipments
  • Hoisting: electric wire rope Hoists and Crabs
  • Cross travel and Long travel: EOT/ Gantry / Goliath / Derrick Cranes
  • Winches and Conveyors Rolling mills
  • Sugar, Mining, Cement, Textile Industries to name a few.
  • Brake motors.

Technical Data

Body Material Aluminum Powder Coated
Enclosure IP-55 Degree of Protection
Mounting Position Vertical
Cable Entry ¾" Conduit
Rated Voltage 500 VAC
Thermal Test Current 10 A/40 A
No. of Contacts 2 NC
Mode of Operation Two way self resetting
Contact Material Silver Cadmium
